Overview
This article covers how to view and manage PayEngine payment links sent from within Flex, including tracking payment statuses, finding links that are still unpaid, and copying, resending, or cancelling links. Be sure to check out PayEngine | Overview and Key Concepts for general information.
Viewing Sent Payment Links

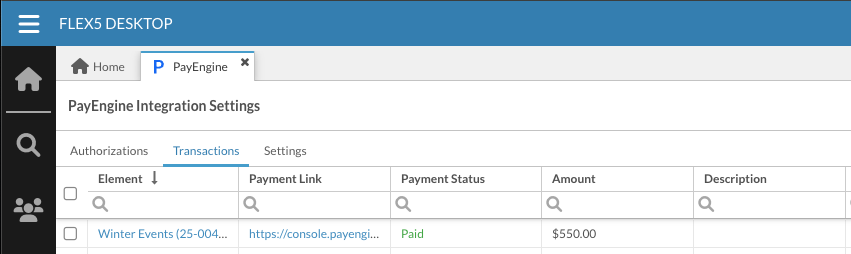

Navigate to Main Menu > Integrations > PayEngine and select the Transactions subtab.
You can also get there from a PayEngine-enabled Flex element: click Financials, then under PayEngine, click Integration Settings and select the Transactions subtab.

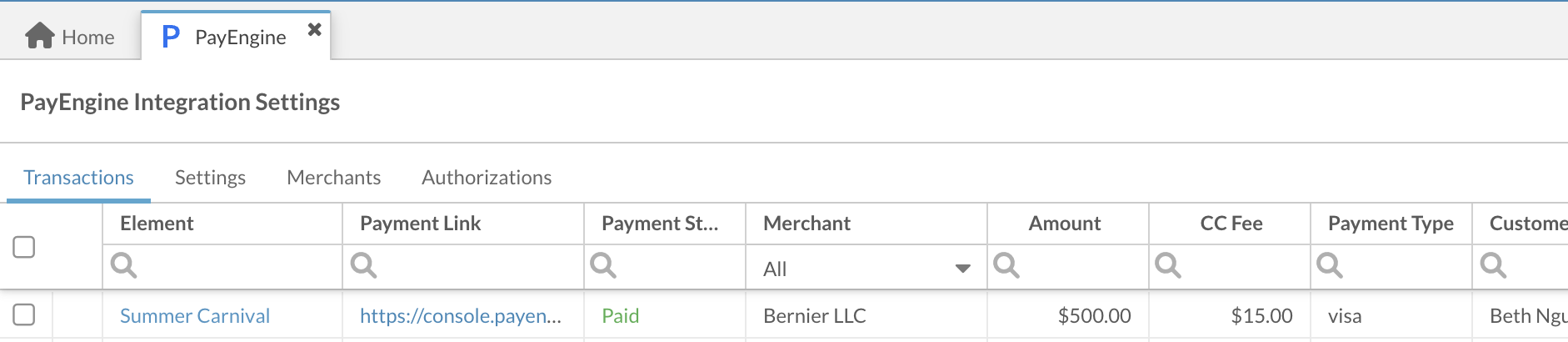

The Transactions grid shows all the relevant information for your sent payment links.
- Action: The column (next to the checkboxes) containing the Options menu as you hover over a line.
- Element: The title of the Flex element (Quote, Invoice, etc.) the payment link was sent from.
- Element Number: The code corresponding with the Flex element (Quote, Invoice, etc.)
- Payment Link: The PayEngine payment link that was sent.
- Payment Status: The current status of the payment, updated automatically from PayEngine.
- Days Since Link Created: The number of days since the payment link was sent. Sort this column to find links that have gone unpaid the longest and may need a follow-up.
- Merchant: The name of the Merchant account associated with the payment link.
- Amount: The value entered on the Send Payment Link popup.
- CC Fee: The fee charged for a credit card transaction, if applicable.
- Payment Type: The specific payment method used (e.g. ACH, Visa).
- Customer Name: The first and last name taken from the payment link information.
- Sent Date: The date and time the payment link was sent.
- Updated Date*: The date and time the payment link was last updated.
- User: The logged-in user who sent the payment link.
- Transaction ID*: The PayEngine ID for the transaction.
-
Description*: The value entered on the Send Payment Link popup.
*These columns are not shown by default,

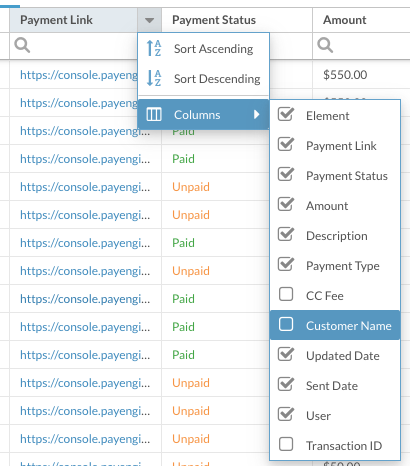

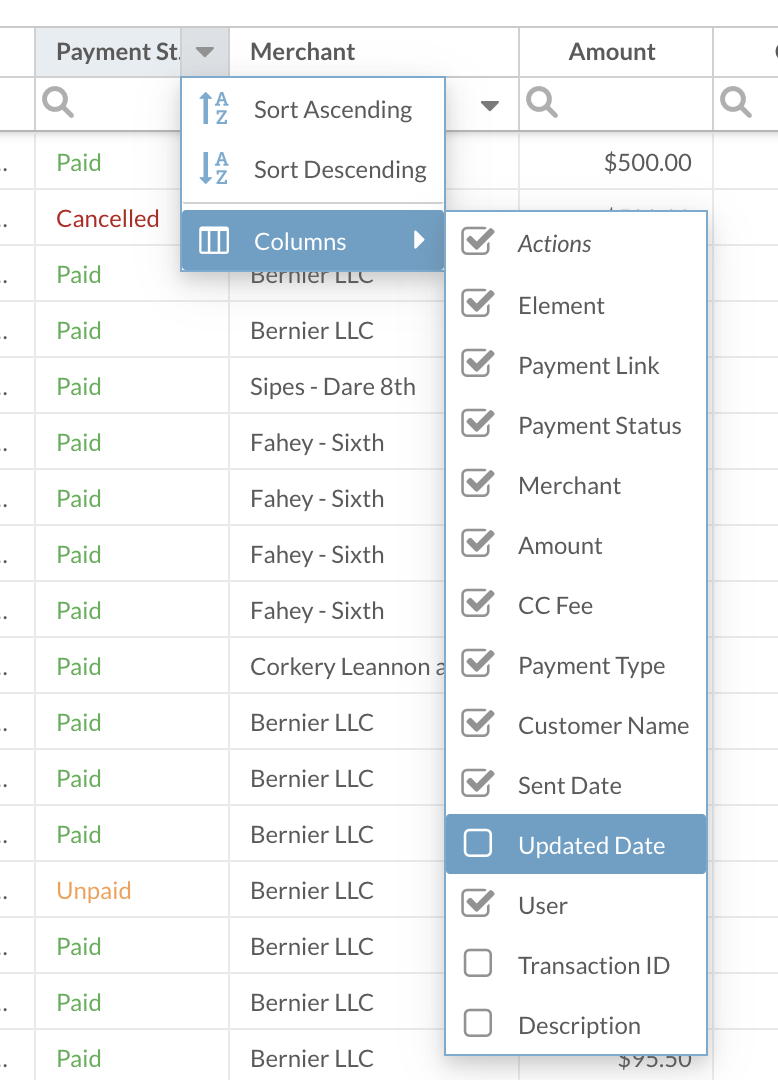

You can configure the columns shown using the configure Columns options (as shown below). Select the arrow in any column header for options.
Payment Statuses
Each payment link's status is color-coded in the Payment Status column and updated automatically through your connection to PayEngine, so it always shows the most up-to-date information. This includes changes that happen after a payment is first made, such as a refund or an ACH payment that later fails.

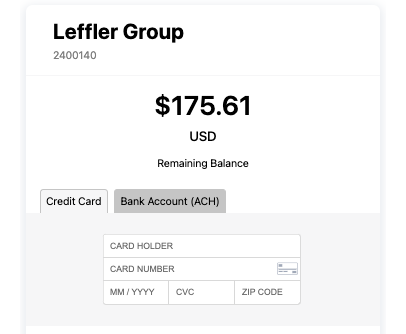

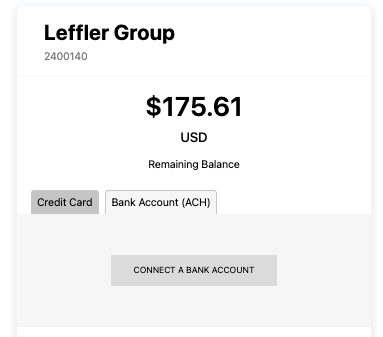

Unpaid: The payment link has been sent but not yet paid. Clicking the link opens a PayEngine page where the client can pay with a Credit Card or Bank Account (ACH).
Paid: The client has completed payment. Clicking the link opens a PayEngine confirmation page.
Cancelled: The payment link was cancelled and can no longer be used. See Cancelling Payment Links below.
Refunded: The payment was refunded in PayEngine. Hover over the info icon next to the status for more details.
Failed: The payment initially went through but was later rejected by PayEngine. This happens most often with ACH payments.

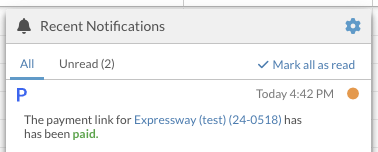

Notifications (located in the left-hand Resource Browser menu) include a link back to the element the payment link was sent from, along with the color-coded status, so you can see when payments have been completed.
Filtering by Payment Status
Use the Payment Status filter to show only the statuses you want to focus on, such as just Unpaid links.
- From the Transactions subtab, click the filter field under the Payment Status column header to open the dropdown.
- Choose each status you want to show. You can select more than one.
Copying a Payment Link
To copy a payment link, click the Copy Payment Link icon next to the link in the Payment Link column, then paste it wherever you'd like to share it. The copy icon is available for payment links of every status.
Resending Payment Links
-
From the Transactions subtab, click the Options menu to the right of the checkboxes and click Resend Payment Link.

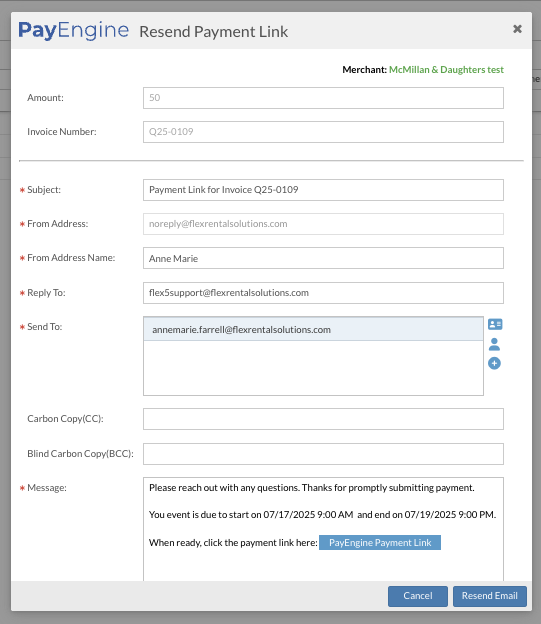

- A popup opens with the standard PayEngine Email Template (selected in the Settings). Edit the email as needed.
Note that the Amount and Invoice number fields cannot be edited in this popup. To request a different amount or connect the payment to a different element, cancel the payment link and send a new one. - Send the email from the popup.
Cancelling Payment Links
Only payment links with the status Unpaid can be cancelled.
-

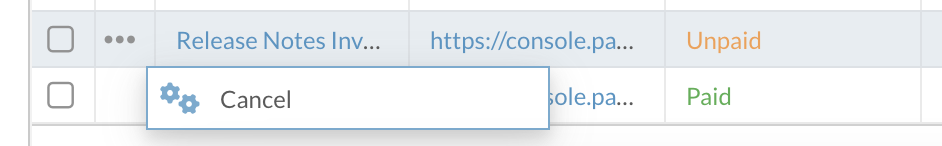

From the Transactions subtab, click the Options menu to the right of the checkboxes and click Cancel.

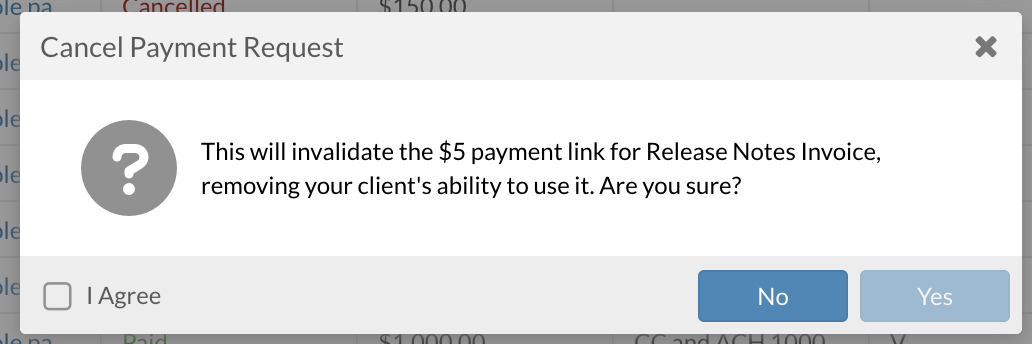

- Confirm the cancellation in the popup.
You can also cancel a payment link in PayEngine by navigating to your PayEngine Merchant Portal > Hosted Payments and clicking the toggle on the far right of the link to deactivate it.
Once a link is cancelled with either method, its status changes to Cancelled and the link can no longer be used.
Sales Data Visualization (BETA)
The Sales tab is located next to the Transactions tab. This is an early version of PayEngine data visualization in bar chart form. Expect changes as we gather feedback and continue work on Flex-PayEngine.
The top four cards are calculated from transactions with a Paid status:
- This Month's Total Volume
- This Month's Total Transactions
- Total Volume (YTD)
- Total Transactions (YTD)
The bar chart shows a rolling 6-month view, with volume ($) on the y-axis. Each Merchant is represented by a bar, color-coded with the key at the bottom. Hover over a bar to see the number of transactions and total $ volume for that month.
Next Steps
Start using Flex-PayEngine to send payment links to clients. If needed, adjust additional settings.
